ANTRACK V2-EC4-DTHP Hydro Cooling Solution
ANTRACK V2-EC4-DTHP Hydro Cooling Solution
ANTRACK V2-EC4-DTHP Hydro Cooling Solution
ANTRACK V2-EC4-DTHP Hydro Cooling Solution

ANTRACK V2-EC4-DTHP Hydro Cooling Solution

£9,000.00 £7,500.00

Contact us
  • - PSU included with all miners
  • - Full manufacturer warranty included

Product Details

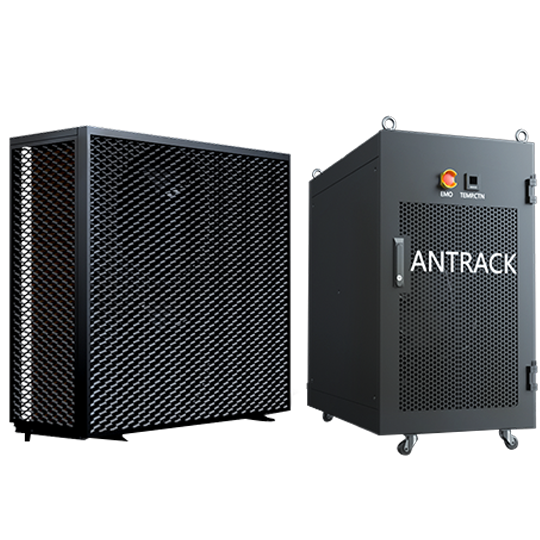

The ANTRACK V2 offers an all-in-one cooling solution designed specifically for the latest Bitcoin Hydro ASIC miners.

With its low-temperature cooling capabilities, the ANTRACK V2 enhances system uptime and creates an optimal environment for long-lasting, reliable mining operations.

The ANTRACK V2 supports the following configurations:

Up to 4 units of ANTMINER (Hydro)

Up to 4 units of ANTMINER (2U Hydro)

Up to 2 units of ANTMINER (3U Hydro)

Kindly contact our sales manager by email (info@coinminingcentral.com) or contact page to confirm your shipping method and obtain the final shipping cost.



How it works:

ANTRACK V2 Cooling System

ANTRACK V2 employs an independent fan to draw in air and cool the coolant separately. The coolant dissipates heat through a high-efficiency heat exchanger, then circulates to high-performance servers to absorb heat, ensuring optimal operational stability. The heated coolant returns to the heat exchanger for continuous cooling, maintaining a stable and reliable environment for your high-power servers.

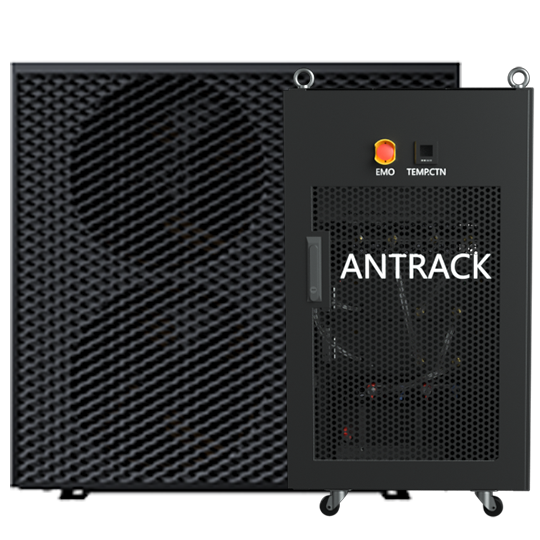

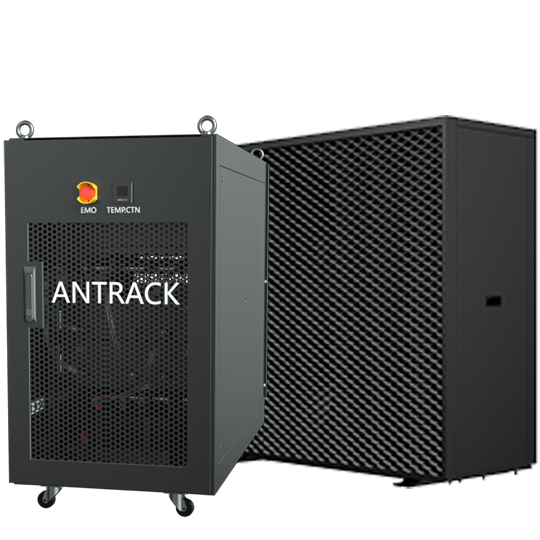

System Components

ANTRACK V2 is composed of the following key elements:

  1. Cabinet Frame
    The robust cabinet frame houses the heat exchangers, fans, water pump and ASIC miners.. Its sturdy construction ensures reliability and ease of transportation, installation, and operation.

  2. High-Efficiency Heat Exchanger
    This component features quick-connect fittings, aluminum fins, and water collectors. It operates as a closed-loop system, efficiently dissipating heat into the air through the coolant.

  3. External Cooler
    The ANTRACK V2 external cooler integrates a heat pump module, which can achieve 80 °C heat recovery while providing stable cold water to the miners, helping customers achieve dual benefits.The fans provide forced air circulation, enhancing heat dissipation by rapidly moving air over the heat exchanger and removing heat from the coolant.

  4. Temperature Control System
    Located on the front panel, this system manages fan operation based on the coolant’s outlet temperature, which correlates with the temperature of the high-performance servers. This allows precise temperature regulation for optimal cooling performance.

Specifications: ANTRACK V2

Detailed Characteristics Value
Part 1: Mining Cabinet
Hardware Configuration

Size (Length*Width*Height), mm (without package)

1200*600*1300

Size (Length*Width*Height), mm (with package)

1460*1330*780

Net weight, kg (without package)

130

Gross weight, kg (with package)

185

Network connection mode

RJ45 Ethernet 10/100M
Power Supply
Power supply AC Input voltage, Volt(1-1) 380~415V AC
Power supply AC Input Frequency Range, Hz 50~60
Power supply AC Input current, Amp(1-2) 63
Water pump

Rated power, W

 450

Noise, dBA@1m

 60
Lift, m 19
Size (Length*Width* Height), mm 360*210*268
Plate heat exchanger
Maximum heat exchange power, kW 30
Size (Length*Width* Height), mm 305*106*64
Diameter of water pipe connector, mm

DN20
Part 2: External Cooler(1-3)
Hardware Configuration
Size (Length*Width*Height), mm (without package)

1340*570*1330
Size (Length*Width*Height), mm (with package)

1490*590*1495
Net weight, kg (without package)

235
Gross weight, kg (with package)

248
Power supply
Power supply AC input voltage, Volt(1-1) 380~415V AC
Power supply AC input frequency range, Hz 50~60
Maximum power supply AC input current, Amp(1-2) 21
Heat pump

Heating Capacity (typical), kW

 32

Compressor Input (typical), kW

 8

EER (typical)

 3.0

Sound Level, Db(A)

 50
Refrigerant R290
Heating water outlet temperature, °C 80
Fan
Rated power, W

500
Noise, dBA@1m

50
Size (Length*Height*Thickness), mm

551*551*160
Water pump
Rated power, W

180
Noise, dBA@1m

30
Size (Length*Width* Height), mm

130*551*129
Environment Requirements
Ambient temperature, °C -20~40
Water flow, L/min 32.0~40.0 (Cabinet side)
Water flow, L/min 32.0~40.0 (Heating side)
Water pressure, bar ≤3.5
Working fluid(1-4) Organic Antifreeze (10%)
Installation distance, m(1-5) 50
Liquid PH 7.8~8.5
Storage temperature, °C -20~70
Operation humidity(non-condensing), RH 10~90%
